#無輸入口

msg.payload
#   1：DI檢測到高電平      0：DI檢測到低電平

獲取全局變量：

global.get("DI_1")
#注意1:流程內至少存在一個開關量輸入節點，才會使能開關量輸入的全局變量，才能讀取
#注意2:如果已經初始化了全局變量，重啟網關才能刪除全局變量

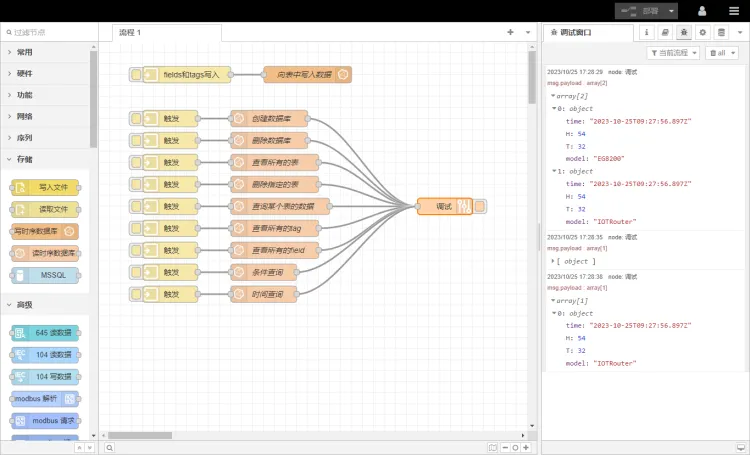

全局變量可以很直觀的在右側全局變量窗口查看：

DI檢測&讀取全局變量

[{"id":"1f3f938edf2e8c81","type":"function","z":"2ff624305b8cb30b","name":"函數計算 1","func":"msg.payload = global.get(\"DO_1\")\nreturn msg;","outputs":1,"noerr":0,"initialize":"","finalize":"","libs":[],"x":390,"y":340,"wires":[["6e804d72c4c1c473"]]},{"id":"b416ef03a7d8eb0d","type":"inject","z":"2ff624305b8cb30b","name":"","props":[{"p":"payload"},{"p":"topic","vt":"str"}],"repeat":"","crontab":"","once":false,"onceDelay":0.1,"topic":"","payload":"","payloadType":"date","x":210,"y":340,"wires":[["1f3f938edf2e8c81"]]},{"id":"6e804d72c4c1c473","type":"debug","z":"2ff624305b8cb30b","name":"調試 2","active":true,"tosidebar":true,"console":false,"tostatus":false,"complete":"false","statusVal":"","statusType":"auto","x":550,"y":340,"wires":[]},{"id":"f25caf631b7b0f87","type":"di","z":"2ff624305b8cb30b","name":"","index":"1","interval":false,"intervalValue":1000,"x":250,"y":220,"wires":[["6ee35db5424a4d26"]]},{"id":"6ee35db5424a4d26","type":"debug","z":"2ff624305b8cb30b","name":"調試 1","active":true,"tosidebar":true,"console":false,"tostatus":false,"complete":"payload","targetType":"msg","statusVal":"","statusType":"auto","x":470,"y":220,"wires":[]}]
