大家好，我們繼續學習EG系列邊緣計算網關的Node-RED可視化編程，今天要講解的是【DI&DO節點】。 EG網關自帶若干個DI/DO節點，DI（數字輸入）和DO（數字輸出）節點通常用于與各種硬件設備進行交互，如傳感器、執行器等，下面讓我們一起來學習吧！

DI（數字輸入）節點

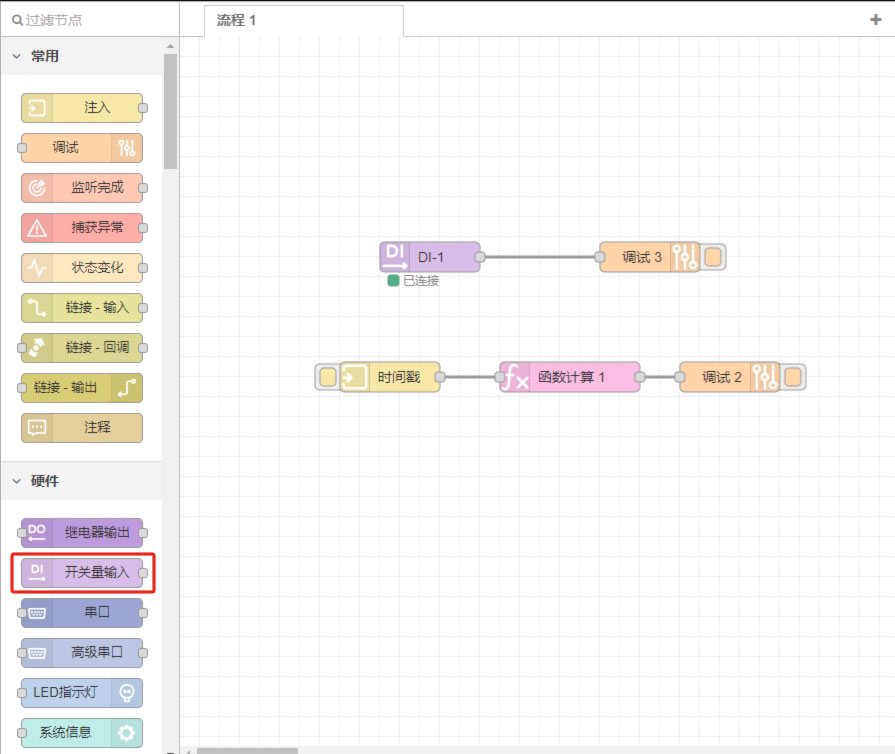

【DI節點】

當DI節點檢測到DI接口的信號有變化時，會主動輸出1/0來表示當前DI接口的狀態。其中1表示DI檢測到高電平，0表示DI檢測到低電平。

PS：該節點支持檢測NPN(包括干接點)和PNP。默認支持NPN模式，如需要PNP，請在采購時向客服說明。

【DI節點】功能

1. 定時刷新狀態

DI節點會根據設置的時間，周期性的刷新當前的DI狀態。存儲在全局變量“DI_X”中，X為DI的通道號。當然，即使不設置定時刷新，DI如果發生狀態變化也會主動更新“DI_X”。

2. 全局變量

在函數計算如果需要獲DI的當前狀態，可以使用以下語法獲取：

global.get("DI_1")
#注意1:流程內至少存在一個開關量輸入節點，才會使能開關量輸入的全局變量，才能讀取
#注意2:如果已經初始化了全局變量，重啟網關才能刪除全局變量

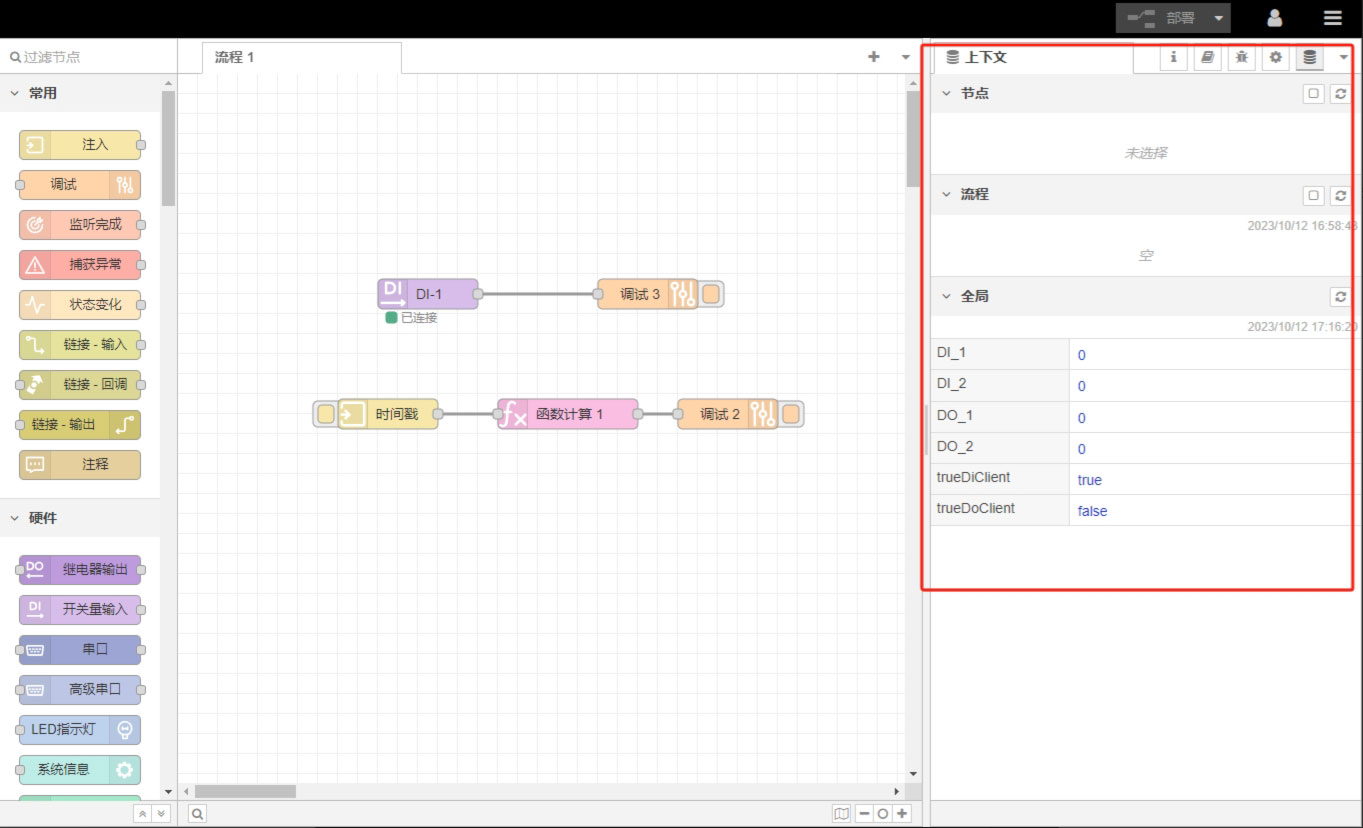

全局變量可以很直觀的在右側全局變量窗口查看：

【DI節點】實操步驟

手動改變DI1口接近開關傳感器的狀態，觀察結果。同時通過函數計算節點讀取全局變量：

所有的流程支持以json格式導入導出，方便與其他人分享做好的流程。本節的流程json文件如下，復制后在菜單欄右上角選擇導入粘貼即可，導出同理：

[{"id":"1f3f938edf2e8c81","type":"function","z":"2ff624305b8cb30b","name":"函數計算 1","func":"msg.payload = global.get(\"DO_1\")\nreturn msg;","outputs":1,"noerr":0,"initialize":"","finalize":"","libs":[],"x":390,"y":340,"wires":[["6e804d72c4c1c473"]]},{"id":"b416ef03a7d8eb0d","type":"inject","z":"2ff624305b8cb30b","name":"","props":[{"p":"payload"},{"p":"topic","vt":"str"}],"repeat":"","crontab":"","once":false,"onceDelay":0.1,"topic":"","payload":"","payloadType":"date","x":210,"y":340,"wires":[["1f3f938edf2e8c81"]]},{"id":"6e804d72c4c1c473","type":"debug","z":"2ff624305b8cb30b","name":"調試 2","active":true,"tosidebar":true,"console":false,"tostatus":false,"complete":"false","statusVal":"","statusType":"auto","x":550,"y":340,"wires":[]},{"id":"f25caf631b7b0f87","type":"di","z":"2ff624305b8cb30b","name":"","index":"1","interval":false,"intervalValue":1000,"x":250,"y":220,"wires":[["6ee35db5424a4d26"]]},{"id":"6ee35db5424a4d26","type":"debug","z":"2ff624305b8cb30b","name":"調試 1","active":true,"tosidebar":true,"console":false,"tostatus":false,"complete":"payload","targetType":"msg","statusVal":"","statusType":"auto","x":470,"y":220,"wires":[]}]

DO（數字輸出）節點

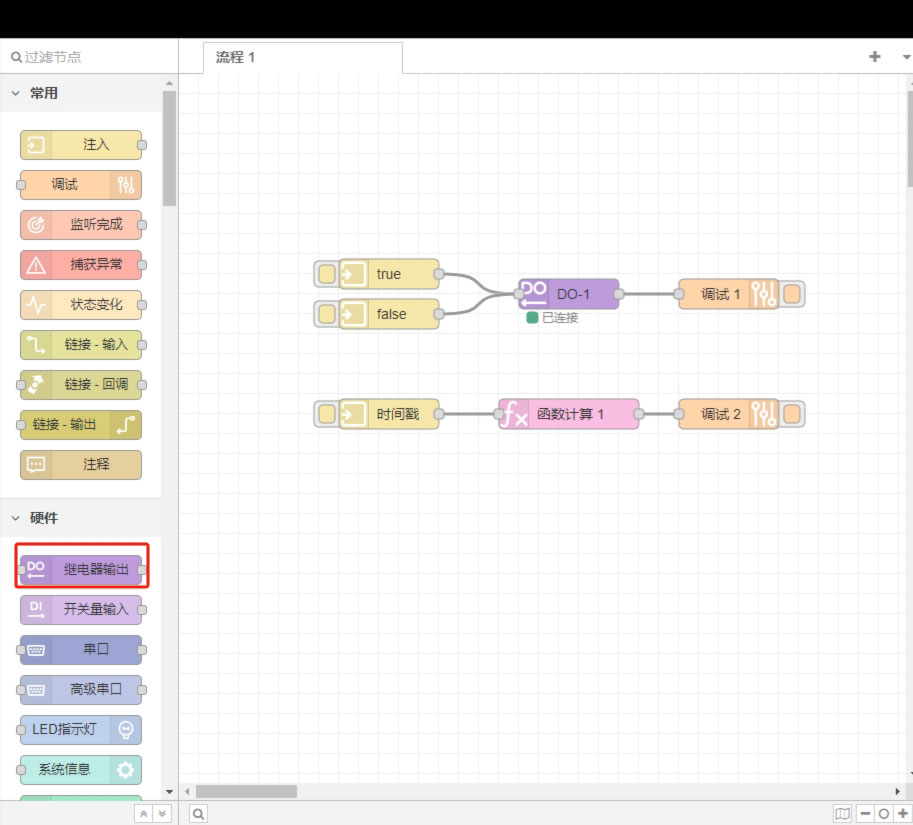

【DO節點】

 可以通過對【DO節點】寫入1/0或者true/false來實現控制繼電器的吸合或者斷開。

繼電器容量：10A/250VAC 30VDC，即最大可直接承載2500W的用電設備。一般接大功率用電設備時，建議加接觸器或者中間繼電器進行強弱電隔離。

【DO節點】功能

1. 定時刷新狀態

DO節點會根據設置的時間，周期性的刷新當前的繼電器狀態。存儲在全局變量“DO_X”中，X為繼電器的通道號。

2. 全局變量

在函數計算如果需要獲取繼電器的當前狀態，可以使用以下語法獲?。?/p>

global.get("DO_1")
#注意1:流程內至少存在一個繼電器節點，才會使能繼電器的全局變量，才能讀取
#注意2:如果已經初始化了全局變量，重啟網關才能刪除全局變量

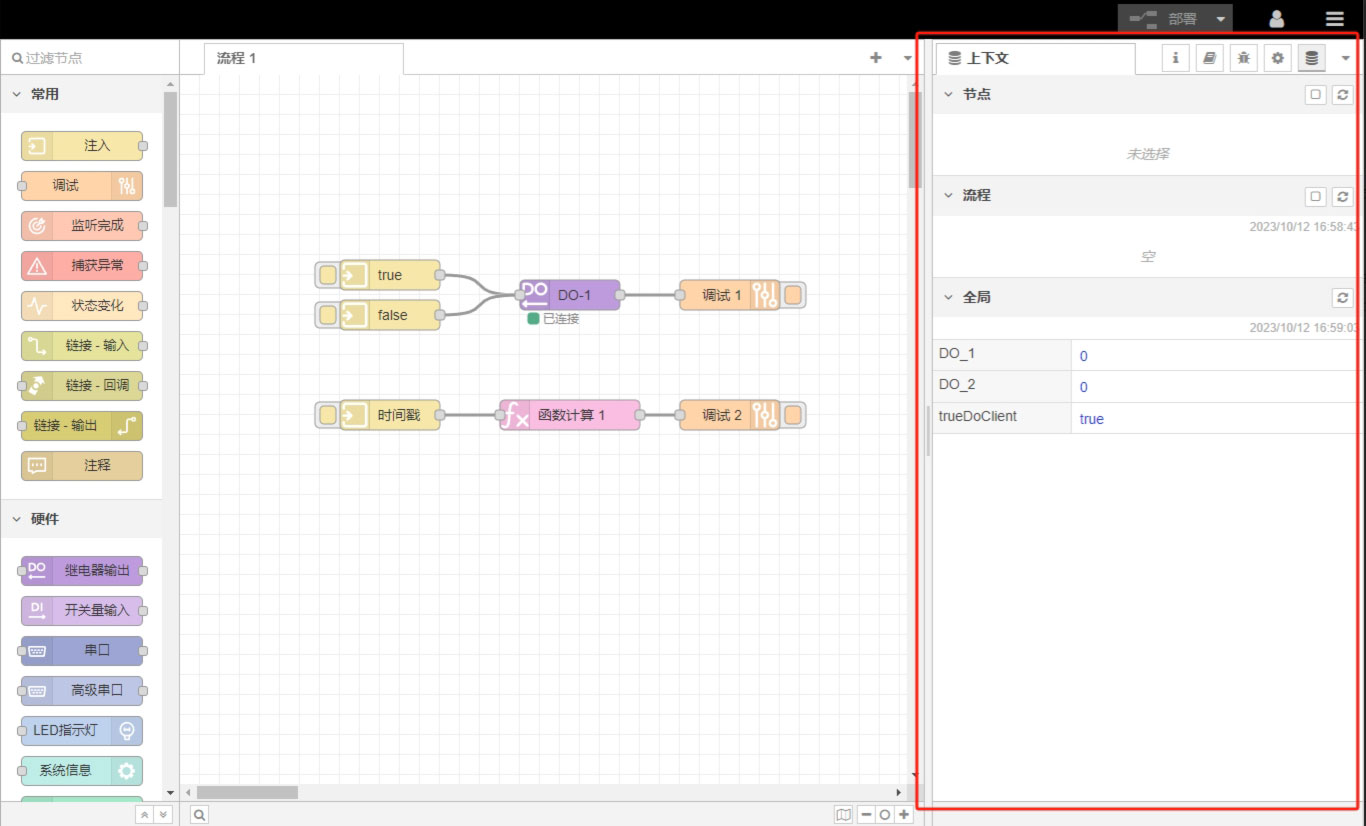

全局變量可以很直觀的在右側全局變量窗口查看：

【DO節點】實操步驟：

1. 控制繼電器&獲取繼電器狀態

函數計算讀取DO_1即第一路繼電器的狀態，賦值給msg.payload后通過調試2打印在日志窗口：

json文件：

[{"id":"2dafde0160e2ba6b","type":"do","z":"2ff624305b8cb30b","name":"","index":"1","interval":false,"intervalValue":1000,"x":410,"y":180,"wires":[["a603591f3e178be1"]]},{"id":"6992c0ad230b940b","type":"inject","z":"2ff624305b8cb30b","name":"","props":[{"p":"payload"},{"p":"topic","vt":"str"}],"repeat":"","crontab":"","once":false,"onceDelay":0.1,"topic":"","payload":"true","payloadType":"bool","x":230,"y":160,"wires":[["2dafde0160e2ba6b"]]},{"id":"a603591f3e178be1","type":"debug","z":"2ff624305b8cb30b","name":"調試 1","active":true,"tosidebar":true,"console":false,"tostatus":false,"complete":"payload","targetType":"msg","statusVal":"","statusType":"auto","x":570,"y":180,"wires":[]},{"id":"149a0ab24f4c5d8c","type":"inject","z":"2ff624305b8cb30b","name":"","props":[{"p":"payload"},{"p":"topic","vt":"str"}],"repeat":"","crontab":"","once":false,"onceDelay":0.1,"topic":"","payload":"false","payloadType":"bool","x":230,"y":200,"wires":[["2dafde0160e2ba6b"]]},{"id":"1f3f938edf2e8c81","type":"function","z":"2ff624305b8cb30b","name":"函數計算 1","func":"msg.payload = global.get(\"DO_1\")\nreturn msg;","outputs":1,"noerr":0,"initialize":"","finalize":"","libs":[],"x":410,"y":300,"wires":[["6e804d72c4c1c473"]]},{"id":"b416ef03a7d8eb0d","type":"inject","z":"2ff624305b8cb30b","name":"","props":[{"p":"payload"},{"p":"topic","vt":"str"}],"repeat":"","crontab":"","once":false,"onceDelay":0.1,"topic":"","payload":"","payloadType":"date","x":230,"y":300,"wires":[["1f3f938edf2e8c81"]]},{"id":"6e804d72c4c1c473","type":"debug","z":"2ff624305b8cb30b","name":"調試 2","active":true,"tosidebar":true,"console":false,"tostatus":false,"complete":"false","statusVal":"","statusType":"auto","x":570,"y":300,"wires":[]}]

2. 全局變量

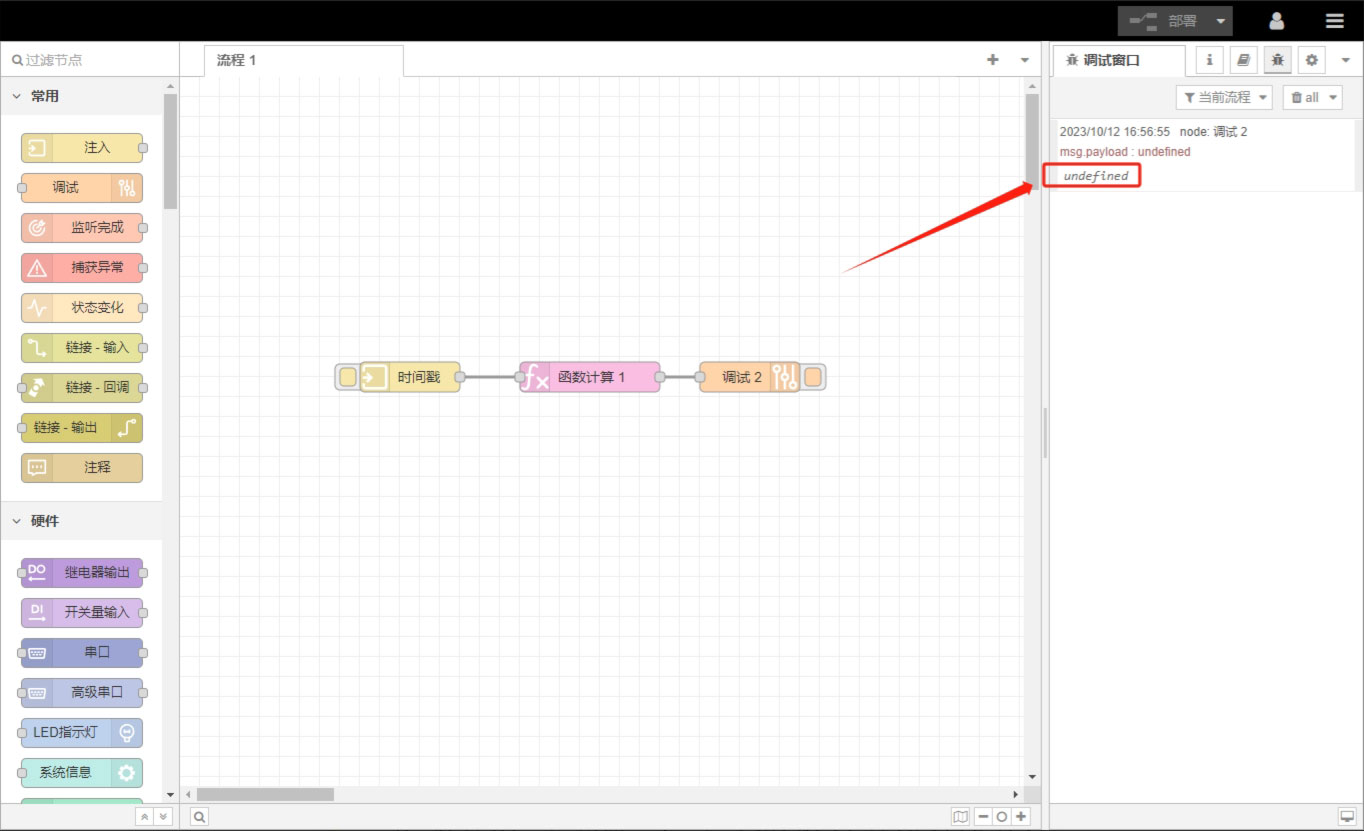

函數計算讀取DO_1即第一路繼電器的狀態，如果此時流程內沒有繼電器輸出節點，則會提示未定義：

小提示：

使用接觸器或者中間繼電器時，建議增加滅弧器，來消除感性負載在失電時產生的感生電能對電路產生的干擾，保護設備穩定長壽命工作。

結語

今天的分享結束了，以上就是EG系列邊緣計算網關可視化編程教程【DI/DO節點】的全部內容，EG系列邊緣計算網關是可支持Node-RED編程的邊緣計算網關，硬件節點包含DI/DO/AI/AO/串口/OTA/SYS/GPS/CAN等！我們期待下期再見！
