需求概述

本章主要實現一個流程：EG8200采集西門子S7-200smart的數據，并將數據存儲在Modbus寄存器中，等待外部主機通過Modbus TCP協議來讀取。

要采集的PLC的IP及端口：

需求分析

在制作流程時，基礎的邏輯是根據功能實現來制作流程。該需求經過分析可以得出，主要分為PLC數據讀取與存儲、Modbus TCP通信兩個部分。

1.通過西門子S7協議讀取PLC的數據，得到的數據存儲在內存中(西門子節點)

2.將數據進行格式化(函數節點)

3.將格式化后的數據存儲到寄存器中(Modbus Server節點)

4.外部主機連接主動讀取

需求實現

1.采集PLC數據

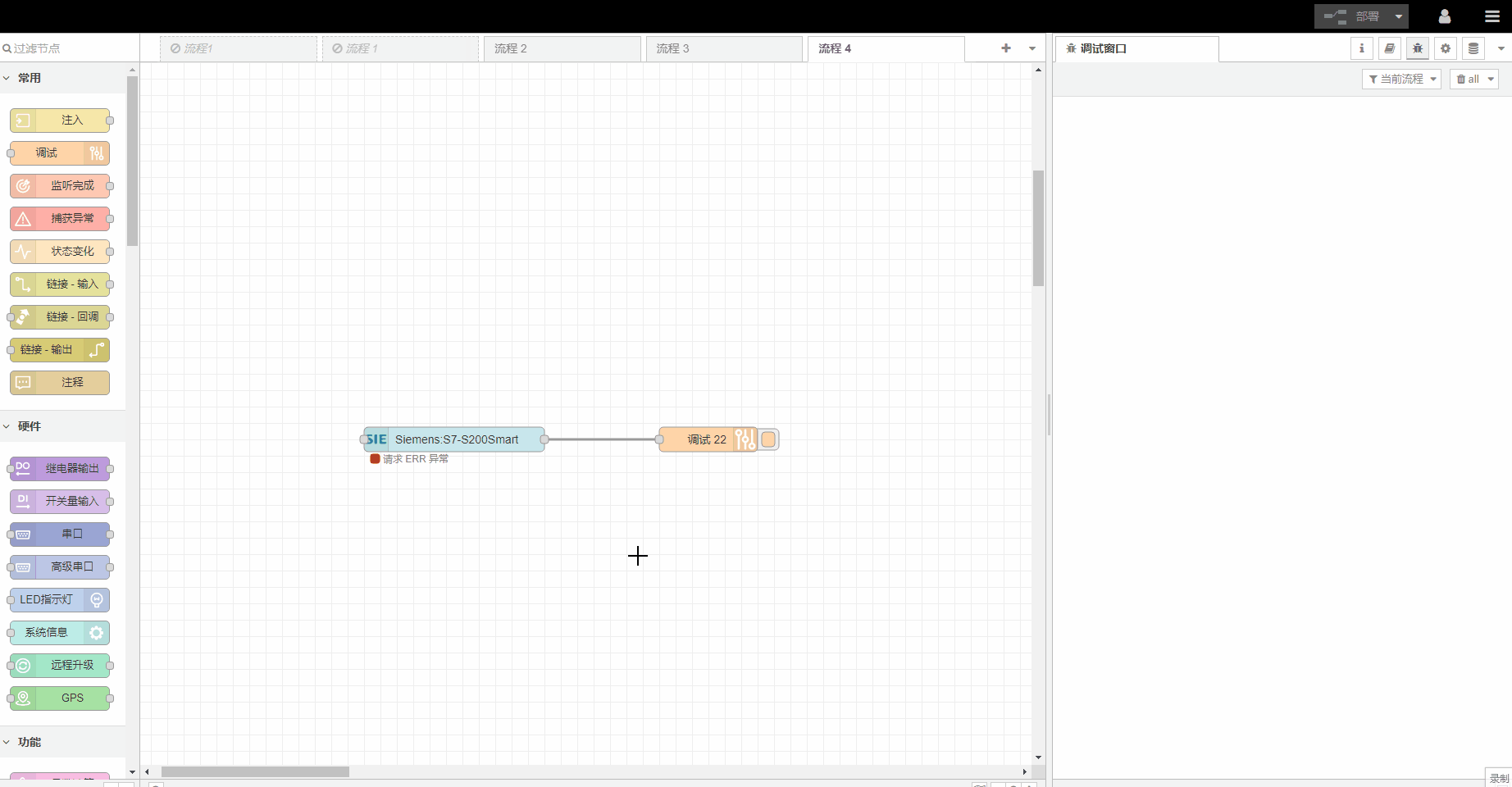

從節點庫拖入一個S7讀數據節點，以及一個調試節點，調試節點用于查看讀取到的PLC的數據，方便定位問題：

雙擊西門子節點，根據需求概述的內容填寫對應的設置參數，如下圖所示：

如果是連續地址，可配置起始地址并填寫讀取長度即可

如果設置正確，調試窗口會有日志打印，顯示的是讀取到的數據內容：

有的時候PLC數據點比較多，手動依次錄入比較繁瑣。節點支持數據點的導入導出或者參數傳遞的方式來讀?。?/p>

本例程用到的傳參代碼如下：

2.數據進行格式化

使用函數節點將PLC數據處理成對應格式：

數據格式化參考代碼如下：

3.存儲到Modbus寄存器

使用Modbus服務節點，將格式化的數據傳入，并配置存儲方式：

使用TCP IN節點和TCP OUT節點搭配實現TCP 服務端：

使用上位機(Modbus Poll軟件)通過Modbus TCP來讀取映射的數據：

源碼

[{"id":"ac557854c44a5144","type":"Siemens","z":"a73a8f4565433249","name":"","protocol":"iplink_SiemensS7","IPAddress":"192.168.0.34","DestPort":"102","IPLinkTimeout":"2000","IPCommTimeout":"2000","Spname":"COM10","Baudrate":"9600","Databits":"8","Stopbit":"1","Paritybit":"0","RTSEnable":false,"SpLinktimeout":"2000","SpIntertimeout":"-1","workMode":"read","readMode":"trigger","readCyc":"2000","vartable":[],"SiemensS7Model":"5","SiemensS7ConnectionType":"1","SiemensS7Rack":"0","SiemensS7Slot":"0","SiemensS7LocalTSAP":"0","SiemensS7DestTSAP":"0","SiemensPPIStation":"2","stringvar":[],"customName":"Siemens:S7-S200Smart","x":670,"y":1080,"wires":[["416b9e28dcbaffa9"]]},{"id":"06b785ae918b8f6a","type":"debug","z":"a73a8f4565433249","name":"調試 278","active":true,"tosidebar":true,"console":false,"tostatus":false,"complete":"true","targetType":"full","statusVal":"","statusType":"auto","x":1260,"y":1140,"wires":[]},{"id":"db188f4ed1966c88","type":"function","z":"a73a8f4565433249","name":"函數計算 31","func":"msg.payload = [\n{ func: \"ReadBoolArray\", body: { name: \"\", address: \"I0\", length: 8 } },\n{ func: \"ReadFloatArray\", body: { name: \"\", address: \"VD20\", length: 4 } },\n{ func: \"ReadUInt16Array\", body: { name: \"\", address: \"VW36\", length: 4 } }\n]\nreturn msg;","outputs":1,"noerr":0,"initialize":"","finalize":"","libs":[],"x":430,"y":1080,"wires":[["ac557854c44a5144"]]},{"id":"425a932dfda4e617","type":"inject","z":"a73a8f4565433249","name":"","props":[{"p":"payload"},{"p":"topic","vt":"str"}],"repeat":"","crontab":"","once":false,"onceDelay":0.1,"topic":"","payload":"","payloadType":"date","x":230,"y":1080,"wires":[["db188f4ed1966c88"]]},{"id":"416b9e28dcbaffa9","type":"function","z":"a73a8f4565433249","name":"函數計算 33","func":"var discretes = []\nvar holdings = []\nvar data = msg.payload\ndiscretes = data.I0\nholdings[0] = data.VD20[0]\nholdings[2] = data.VD20[1]\nholdings[4] = data.VD20[2]\nholdings[6] = data.VD20[3]\nholdings[8] = data.VW36[0]\nholdings[9] = data.VW36[1]\nholdings[10] = data.VW36[2]\nholdings[11] = data.VW36[3]\nmsg.discretes = discretes\nmsg.holdings = holdings\nreturn msg;","outputs":1,"noerr":0,"initialize":"","finalize":"","libs":[],"x":870,"y":1080,"wires":[["539601edce2e5927"]]},{"id":"539601edce2e5927","type":"modbusServer","z":"a73a8f4565433249","name":"","uid":1,"model":"2","coils":100,"discretes":100,"holdings":100,"input":100,"columns":[{"Type":"3","Address":"0","Method":"7"},{"Type":"3","Address":"2","Method":"7"},{"Type":"3","Address":"4","Method":"7"},{"Type":"3","Address":"6","Method":"7"}],"x":1100,"y":1080,"wires":[["815f45a3a40a372a"],["06b785ae918b8f6a"]]},{"id":"fbadcb99655853f9","type":"tcp in","z":"a73a8f4565433249","name":"","server":"server","host":"","port":"502","datamode":"stream","datatype":"buffer","newline":"","topic":"","trim":false,"base64":false,"tls":"","x":870,"y":1040,"wires":[["539601edce2e5927"]]},{"id":"815f45a3a40a372a","type":"tcp out","z":"a73a8f4565433249","name":"","host":"","port":"","beserver":"reply","base64":false,"end":false,"tls":"","x":1270,"y":1060,"wires":[]}]

 西門子S7協議與Modbus協議之間的轉換，是工業自動化領域常見的需求之一。通過硬件縱橫智控公司的產品EG8200可以確保設備之間的數據通信順暢。在實施過程中，合理配置地址映射和通信參數，能有效提升系統的可靠性和實時性，為工業自動化系統的優化和擴展提供堅實的基礎。
