本文主要實現的功能是：使用EG系列網關，實現串口與網口的自定義數據收發功能，并支持串口到網口之間的雙向數據透傳。EG系列網關可通過串口（如RS485/RS232）接收或發送自定義協議數據，同時通過以太網接口（TCP/MQTT/UDP）與上位機或其他網絡設備進行數據交互。透傳功能確保串口側的數據可實時、可靠地轉發至網絡側，反之亦然，滿足工業物聯網場景下多協議、多接口互聯的通信需求。整體方案具備高靈活性與可擴展性，適用于數據采集、遠程監控及設備聯網等應用。
場景一：串口自定義數據收發
1. 使用注入節點構造數據
EG系列網關通過串口1實現自定義數據格式的發送與接收（使用串口調試軟件模擬串口設備）：

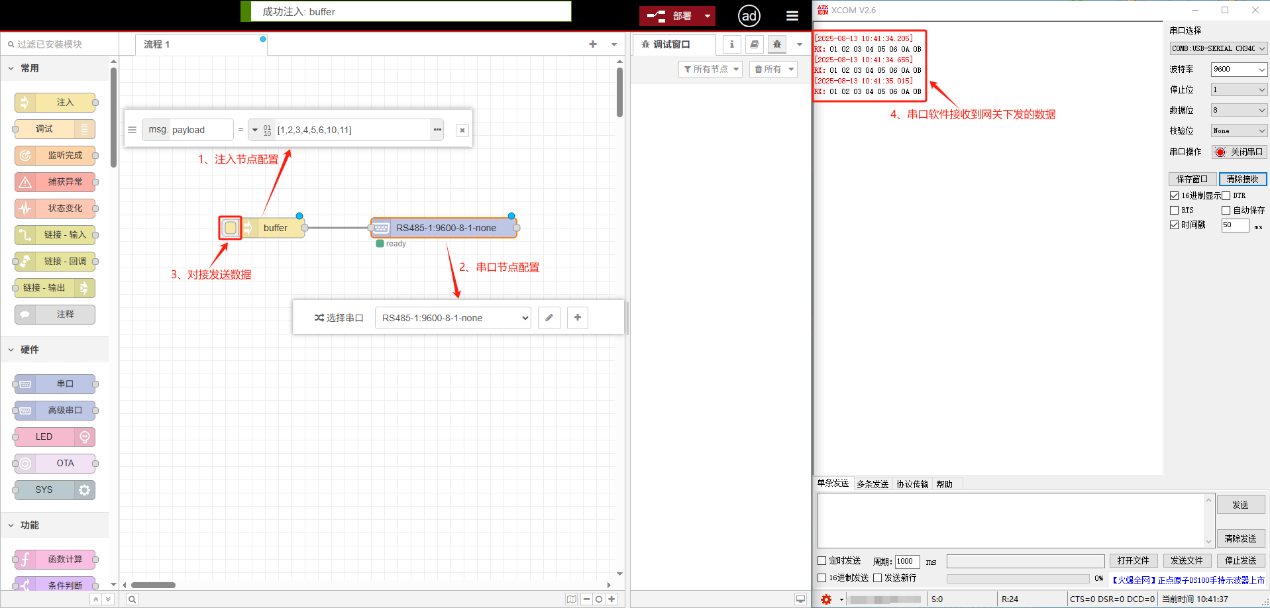

下行發送（網關 → 串口設備）：EG系列網關向串口1發送一串十六進制數據：01 02 03 04 05 06 0A 0B ，使用注入節點發送數據，在配置注入節點時，數據類型設置為“二進制流”（Buffer），數據以十進制格式輸入，對應為：1, 2, 3, 4, 5, 6, 10, 11。
此處為語雀內容卡片，點擊鏈接查看：https://iotrouter.yuque.com/zn3vdn/eg8000/lg97tbt1ma1nfzb3#z8HWp
上行接收（串口設備 → 網關）：EG系列網關從串口1接收數據，使用調試節點打印串口工具發送的數據。
| [{"id":"2b4704f7922fabce","type":"serial port","z":"a3d0b3056469a324","name":"","serial":"3d7d723f9d24c89e","x":370,"y":260,"wires":[["f1b38d12ef17afda"]]},{"id":"92173440eff8d025","type":"inject","z":"a3d0b3056469a324","name":"","props":[{"p":"payload"},{"p":"topic","vt":"str"}],"repeat":"","crontab":"","once":false,"onceDelay":0.1,"topic":"","payload":"[1,2,3,4,5,6,10,11]","payloadType":"bin","x":150,"y":260,"wires":[["2b4704f7922fabce"]]},{"id":"f1b38d12ef17afda","type":"debug","z":"a3d0b3056469a324","name":"調試 1","active":true,"tosidebar":true,"console":false,"tostatus":false,"complete":"false","statusVal":"","statusType":"auto","x":590,"y":260,"wires":[]},{"id":"3d7d723f9d24c89e","type":"serial config","name":"","serialport":"/dev/ttyAS3","serialportname":"RS485-1","baudrate":"9600","databits":"8","stopbits":"1","parity":"none","timeout":"50","reqtimeout":"1000"}] |
2. 使用函數計算節點構造數據
除了使用注入節點發送自定義數據外，還可通過函數計算節點靈活構造和封裝待發送的數據報文。配置如下：在函數計算節點中編寫JavaScript代碼，將目標數據（十六進制報文）以數組形式按字節定義，并封裝為Buffer對象輸出。例如，發送數據 01 02 03 04 05 06 0A 0B，可表示為：
msg.payload = Buffer.from([0x01, 0x02, 0x03, 0x04, 0x05, 0x06, 0x0A, 0x0B]); return msg; |
| [{"id":"9b2fbc4223a8a405","type":"inject","z":"a3d0b3056469a324","name":"","props":[{"p":"payload"},{"p":"topic","vt":tr"}],"repeat":"","crontab":"","once":false,"onceDelay":0.1,"topic":"","payload":"","payloadType":"date","x":150,"y":260,"wires":[["ea7b6a1481b2cb8d"]]},{"id":"ea7b6a1481b2cb8d","type":"function","z":"a3d0b3056469a324","name":"函數計算 1","func":"msg.payload = Buffer.from([0x01, 0x02, 0x03, 0x04, 0x05, 0x06, 0x0A, 0x0B]);\nreturn msg;","outputs":1,"timeout":0,"noerr":0,"initialize":"","finalize":"","libs":[],"x":350,"y":260,"wires":[["2b4704f7922fabce"]]},{"id":"2b4704f7922fabce","type":"serial port","z":"a3d0b3056469a324","name":"","serial":"3d7d723f9d24c89e","x":590,"y":260,"wires":[["eeb20e704fcb6bfe"]]},{"id":"eeb20e704fcb6bfe","type":"debug","z":"a3d0b3056469a324","name":"調試 2","active":true,"tosidebar":true,"console":false,"tostatus":false,"complete":"false","statusVal":"","statusType":"auto","x":810,"y":260,"wires":[]},{"id":"3d7d723f9d24c89e","type":"serial config","name":"","serialport":"/dev/ttyAS3","serialportname":"RS485-1","baudrate":"9600","databits":"8","stopbits":"1","parity":"none","timeout":"50","reqtimeout":"1000"}] |
場景二：網口（TCP協議）自定義數據收發
1. 網關作為TCP客戶端
與場景1的串口自定義收發流程類似，若要實現網口（TCP）的自定義數據收發，只需將原流程中的串口節點替換為TCP客戶端節點，連接TCP服務器即可（使用網絡調試助手模擬TCP服務器）。
| [{"id":"ae1690e73aa50bb9","type":"inject","z":"a3d0b3056469a324","name":"","props":[{"p":"payload"},{"p":"topic","vt":"str"}],"repeat":"","crontab":"","once":false,"onceDelay":0.1,"topic":"","payload":"[1,2,3,4,5,6,10,11]","payloadType":"bin","x":250,"y":420,"wires":[["2a19998cda5f16e7"]]},{"id":"db64c73423c1f330","type":"debug","z":"a3d0b3056469a324","name":"調試 1","active":true,"tosidebar":true,"console":false,"tostatus":false,"complete":"false","statusVal":"","statusType":"auto","x":690,"y":420,"wires":[]},{"id":"2a19998cda5f16e7","type":"tcp request","z":"a3d0b3056469a324","name":"","server":"192.168.0.59","port":"9600","out":"sit","ret":"buffer","splitc":" ","newline":"","trim":false,"tls":"","x":460,"y":420,"wires":[["db64c73423c1f330"]]}] |
2. 網關作為TCP服務端
使用TCP IN節點工作在監聽模式接收數據，通過TCP OUT節點來響應和發送數據。
| [{"id":"1f53226ed4f3b785","type":"tcp in","z":"a3d0b3056469a324","name":"","server":"server","host":"","port":"502","datamode":"stream","datatype":"buffer","newline":"","topic":"","trim":false,"base64":false,"tls":"","x":270,"y":380,"wires":[["24484352918c8c59"]]},{"id":"6176128689f6e641","type":"tcp out","z":"a3d0b3056469a324","name":"","host":"","port":"","beserver":"reply","base64":false,"end":false,"tls":"","x":490,"y":300,"wires":[]},{"id":"cce25820a104d510","type":"inject","z":"a3d0b3056469a324","name":"","props":[{"p":"payload"},{"p":"topic","vt":"str"}],"repeat":"","crontab":"","once":false,"onceDelay":0.1,"topic":"","payload":"[1, 2, 3, 4, 5, 6, 10, 11]","payloadType":"bin","x":270,"y":300,"wires":[["6176128689f6e641"]]},{"id":"24484352918c8c59","type":"debug","z":"a3d0b3056469a324","name":"調試 1","active":true,"tosidebar":true,"console":false,"tostatus":false,"complete":"false","statusVal":"","statusType":"auto","x":490,"y":380,"wires":[]}] |
場景三：數據透傳
1. 串口到TCP（MQTT同理）
這里以EG系列網關的RS485-1口與TCP服務器進行數據透傳為例：
此處為語雀視頻卡片，點擊鏈接查看：見文末
2. TCP到MQTT
這里以EG系列網關TCP與MQTT數據透傳為例：
詳細見：https://iotrouter.yuque.com/zn3vdn/eg8000/rct9apxmetko92v4
